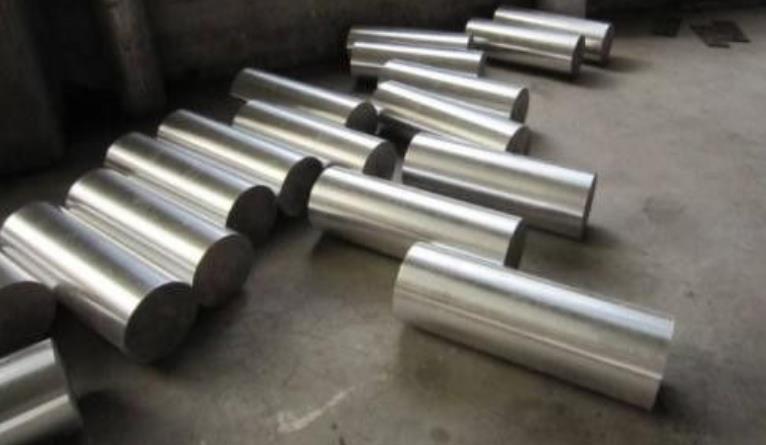

4N 99.99% Pure Magnesium Alloy Extruded Bar/Rod For Aerospace / 3C Products
Details:
Name: magnesium alloy bar,dissolvable magnesium bar.
Specification: Ø50mm,Ø60mm,Ø70mm,Ø80mm,Ø90mm,Ø100mm…..Or customized according to customer requirements.
| item | value |
| Place of Origin | China |
| Brand Name | Hilbo |
| Application | Aviation, Electronics, Machinery Parts |
| Shape | Round bar, rod, Water heater magnesium bar |
| Material | Magnesium |
| Chemical Composition | Mg,Al,Zn,Mn,Fe,Cu, Mg |
| Type | AZ31B, ZK61M, AZ80A, AZ91D |
| Purity | >98% |
| Standard | ISO9001 |
| Surface | Smooth Surface |
| Size | Diameter 3-160 mm |
| Length | Custom |
Magnesium Alloy Chemical Composition:
| Model | chemical component(%) |
| Type | Mg | Al | Zn | Mn | Si | Fe | Cu |
| AX31B | residual | 2.5-3.5 | 0.60-1.4 | 0.20-1.0 | ≤0.08 | ≤0.003 | ≤0.001 |
| AZ61A | | 5.8-7.2 | 0.40-1.5 | 0.15-0.50 | ≤0.10 | ≤0.005 | ≤0.005 |
| AZ80A | | 7.8-9.2 | 0.20-0.80 | 0.12-0.50 | ≤0.10 | ≤0.005 | ≤0.005 |
| AZ91D | | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | ≤0.08 | ≤0.004 | ≤0.001 |
Our product and technical advantages:
1. Professional&advanced magnesium alloy casting technology.
2. We increase the elongation of magnesium alloy plate much better.
3. We make the crystal size of magnesium alloy plate more uniform.
4. We make the size difference of magnesium alloy plates much smaller.
5. The flatness of our magnesium alloy plate can reached 0.0001mm after our special hot-pressing process.
6. We accept customized magnesium alloy plate with thickness range from Imm to 200mm.
7. Advanced testing&inspection equipment.
8. Excellent after-sales service
Performance test data:
| No. | Model | Test condition | Dissolution rate
mg/(cm2*h)) | Strength of extension(MPa) | Yield strength(MPa) | Elongation
(%) | Hardness
(HB) |
| 1 | HB006 | 93℃/3%KCl | 50-70 | ≥370 | ≥260 | ≥2.5 | ≥90 |
| 2 | HB006A | 93℃/3%KCl | 50-70 | ≥310 | ≥220 | ≥6.0 | ≥75 |
| 3 | HB008 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥4.0 | ≥100 |
| 4 | HB008B | 93℃/3%KCl | 40-60 | ≥370 | ≥270 | ≥5 | ≥100 |
| 5 | HB008C | 93℃/3%KCl | 40-60 | ≥310 | ≥220 | ≥15 | ≥85 |
| 6 | HB012 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥3.0 | ≥100 |
| 7 | HB011 | 93℃/3%KCl | 15-35 | ≥420 | ≥300 | ≥3.0 | ≥100 |
| 8 | HB016 | 93℃/3%KCl | 35-55 | ≥280 | ≥180 | ≥15 | ≥60 |
| 9 | HB017 | 93℃/3%KCl | 40-50 | ≥200 | ≥140 | ≥17 | ≥55 |
| 10 | HB018K | 50℃/0.84KCl | 50-70 | ≥240 | ≥170 | ≥12 | ≥55 |
| 11 | HB018 | 50℃/0.84KCl | 30-50 | ≥230 | ≥170 | ≥12 | ≥55 |
| 12 | HB010 | 93℃/3%KCl | 15-35 | ≥190 | ≥120 | ≥30 | ≥45 |
| 13 | HB022 | 43℃/0.05%KCl | 50-60 | ≥300 | ≥200 | ≥5.0 | ≥75 |
| 14 | HB023 | 43℃/0.05%KCl | 20-40 | ≥280 | ≥200 | ≥7.5 | ≥65 |
| 15 | HB024 | 43℃/0.05%KCl | 50-70 | ≥260 | ≥220 | ≥5 | ≥60 |
| 16 | HB013A | 43℃/0.05%KCl | 80-100 | ≥260 | ≥230 | ≥3.5 | ≥75 |
| 17 | HB025 | 50℃/0.84%KCl | 90-110 | ≥275 | ≥200 | ≥12 | ≥65 |
| 18 | HB026 | 93℃/3%KCl | 20-40 | ≥450 | ≥350 | ≥3.0 | ≥110 |
| 19 | HB808 | 50℃/0.84%KCl | 50-70 | ≥370 | ≥260 | ≥3.0 | ≥100 |
| 20 | HB019 | 50℃/0.84KCl | 45-65 | ≥230 | ≥180 | ≥12.0 | ≥55 |
| 21 | HB055 | 93℃/3%KCl | 130-150 | ≥220 | ≥160 | ≥12.0 | ≥55 |
| 22 | HB035 | 93℃/3%KCl | 50-100 | ≥100 | ≥60 | ≥42.0 | ≥35 |
| 23 | HBMM6 | 50℃/0.84%KCl | 70-100 | ≥260 | ≥230 | ≥10.0 | ≥60 |
| 24 | HBMM7 | 50℃/0.84%KCl | 90-120 | ≥270 | ≥240 | ≥9.0 | ≥65 |
| 25 | HBMM8 | 93℃/3%KCl | 100-150 | ≥280 | ≥250 | ≥5.0 | ≥65 |
Advantage of Hilbo Company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Testing Equipment
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
