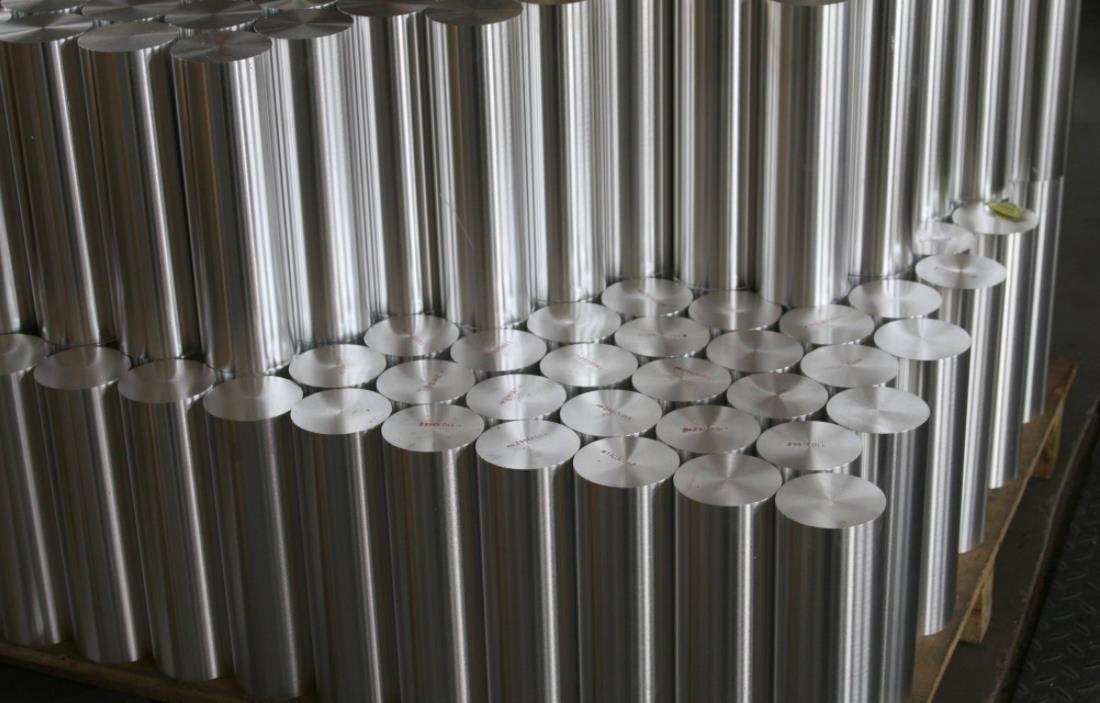

Extruded Magnesium Alloy Round Bar / Rod AZ91D For Aerospace , Military
Details:
Name: magnesium alloy bar,dissolvable magnesium bar.
Specification: Ø50mm,Ø60mm,Ø70mm,Ø80mm,Ø90mm,Ø100mm…..Or customized according to customer requirements.
| Hilbo magnesium alloy material Co., Ltd. |
| Quality Inspection Report |
| NO:JB/MS03-151-1236 |
| Model | Specifications | Process | Furnace No. | Chemical Composition (%) | Low power test |
| Al | Zn | Mn | Fe | Si | Cu | Ni | Mg | Low power | Surface quality | Size |
| | Ø60*1000 | Extrussion | 9850 | 8.9 | 0.60 | 0.28 | 0.004 | 0.08 | 0.02 | 0.001 | Balance | OK | OK | OK |
| |
| |
| AZ91D |
| Magnesium alloy bar | |
Tensile strength
Rm /Mpa | Yield strength 0.2%
Mpa | Elongation at break % |
| | 295 | 195 | 6 |
| | | | Conclusion :Passed inspection |
| Supplier: Hilbo magnesium alloy material Co., Ltd. |
Address : No.1 West street Zhongnan North Road,Shang sha Community
Chang'An Town,Dong guan City, China |
| Tel:0769-81288286 |
Feature:
Low density, good specific performance, good shock absorption performance, good electrical and thermal conductivity, good process performance, poor corrosion resistance, easy to oxidize and burn, and poor heat resistance. Its processing and corrosion and mechanical properties have many characteristics: fast heat dissipation, light weight, good rigidity, certain corrosion resistance and dimensional stability, impact resistance, wear resistance, good attenuation performance and easy recycling; in addition, there are high Features of thermal and electrical conductivity, non-magnetic, good shielding and non-toxic.
Product Advantages:
- Dissolves even at minimal electrolyte concentrations (from 1%) and any temperature.
- The degradation by-product is a fine powder that does not interfere with production.
- Any size available.
Performance test data:
| No. | Model | Test condition | Dissolution rate
mg/(cm2*h)) | Strength of extension(MPa) | Yield strength(MPa) | Elongation
(%) | Hardness
(HB) |
| 1 | HB006 | 93℃/3%KCl | 50-70 | ≥370 | ≥260 | ≥2.5 | ≥90 |
| 2 | HB006A | 93℃/3%KCl | 50-70 | ≥310 | ≥220 | ≥6.0 | ≥75 |
| 3 | HB008 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥4.0 | ≥100 |
| 4 | HB008B | 93℃/3%KCl | 40-60 | ≥370 | ≥270 | ≥5 | ≥100 |
| 5 | HB008C | 93℃/3%KCl | 40-60 | ≥310 | ≥220 | ≥15 | ≥85 |
| 6 | HB012 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥3.0 | ≥100 |
| 7 | HB011 | 93℃/3%KCl | 15-35 | ≥420 | ≥300 | ≥3.0 | ≥100 |
| 8 | HB016 | 93℃/3%KCl | 35-55 | ≥280 | ≥180 | ≥15 | ≥60 |
| 9 | HB017 | 93℃/3%KCl | 40-50 | ≥200 | ≥140 | ≥17 | ≥55 |
| 10 | HB018K | 50℃/0.84KCl | 50-70 | ≥240 | ≥170 | ≥12 | ≥55 |
| 11 | HB018 | 50℃/0.84KCl | 30-50 | ≥230 | ≥170 | ≥12 | ≥55 |
| 12 | HB010 | 93℃/3%KCl | 15-35 | ≥190 | ≥120 | ≥30 | ≥45 |
| 13 | HB022 | 43℃/0.05%KCl | 50-60 | ≥300 | ≥200 | ≥5.0 | ≥75 |
| 14 | HB023 | 43℃/0.05%KCl | 20-40 | ≥280 | ≥200 | ≥7.5 | ≥65 |
| 15 | HB024 | 43℃/0.05%KCl | 50-70 | ≥260 | ≥220 | ≥5 | ≥60 |
| 16 | HB013A | 43℃/0.05%KCl | 80-100 | ≥260 | ≥230 | ≥3.5 | ≥75 |
| 17 | HB025 | 50℃/0.84%KCl | 90-110 | ≥275 | ≥200 | ≥12 | ≥65 |
| 18 | HB026 | 93℃/3%KCl | 20-40 | ≥450 | ≥350 | ≥3.0 | ≥110 |
| 19 | HB808 | 50℃/0.84%KCl | 50-70 | ≥370 | ≥260 | ≥3.0 | ≥100 |
| 20 | HB019 | 50℃/0.84KCl | 45-65 | ≥230 | ≥180 | ≥12.0 | ≥55 |
| 21 | HB055 | 93℃/3%KCl | 130-150 | ≥220 | ≥160 | ≥12.0 | ≥55 |
| 22 | HB035 | 93℃/3%KCl | 50-100 | ≥100 | ≥60 | ≥42.0 | ≥35 |
| 23 | HBMM6 | 50℃/0.84%KCl | 70-100 | ≥260 | ≥230 | ≥10.0 | ≥60 |
| 24 | HBMM7 | 50℃/0.84%KCl | 90-120 | ≥270 | ≥240 | ≥9.0 | ≥65 |
| 25 | HBMM8 | 93℃/3%KCl | 100-150 | ≥280 | ≥250 | ≥5.0 | ≥65 |
Advantage of Hilbo Company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Our product and technical advantages:
1. Professional&advanced magnesium alloy casting technology.
2. We increase the elongation of magnesium alloy plate much better.
3. We make the crystal size of magnesium alloy plate more uniform.
4. We make the size difference of magnesium alloy plates much smaller.
5. The flatness of our magnesium alloy plate can reached 0.0001mm after our special hot-pressing process.
6. We accept customized magnesium alloy plate with thickness range from Imm to 200mm.
7. Advanced testing&inspection equipment.
8. Excellent after-sales service
Testing Equipment
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in guangdong province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
5. Q: How does your factory do regarding quality control?
A: Our factory passed CE, ISO, ROSH, UL certification.
